TK119-3G GPS Vehicle Tracker


$99.98


TK119-3G is a 3G GPS vehicle tracker, especially designed for business fleet management with a cutting oil function.

Using the TK119-3G GPS tracker, you can track vehicle's position real time and cut oil if the vehicle violated some management rules. This is very helpful  for customers to manage their vehicles more transparently and efficiently. Therefor,TK119-3G can be used in commercial fleet management, automobile lease, car rental etc..

Waterproof 3G GPS Tracker for Car

Features

  • GSM / WCDMA dual-mode 7-frequency,  universal in the world.
  • Input voltage range: 6-36 V DC
  • Double Module,GPS precise positioning with A-GPS, LBS positioning for assist.
  • Uploaded by GPRS/WCDMA regularly, Real-time tracking and history route playback.
  • Supports ACC status checking and vehicle status notifying.
  • Built-in battery, Power disconnect alarm & Low battery alarm.
  • Built-in G-sensor ,Vibration, collision and falling alarm.
  • GEO-fence alarm, speed & shift alarm.
  • Remotely cut oil / electric by Relay.
  • Extend I/O port to add extension function(Need Customization).
  • Multiple protocol support, can be integrated to customers' platform.
  • OTA upgrade firmware.
  • Water proof level IP67

Function Interface: Power cable , Relay, ACC
Extended Interface: GPIO for adding extensions (need customization)

Specifications

Voltage 12/ 24/ 36  VDC
Work Current <30mA@12V
Standby Current <10mA@12V
GPS positioning Accuracy 5-15m (Depend GPS signal)
LBS Accuracy About 200 m (Depending on density of base stations)
GPS Frequency 1575 MHz
GSM Frequency 850/900/1800/1900MHz
WCDMA Frequency W850/W1900/W2100MHz
Hot/warm/cold Start <3s,<15s,<60s
Battery Capacity 70mAh
Dimensions (mm) 87(L)X41.6(W)X 12(H)
Work Temperature -20?~70?
Work Humidity 20%~80%RH
Weight 50 g
Water Proof Level IP67


Tracking Platform / App

  • Real-time Tracking
  • Route Play Back
  • Cut Oil (Need Relay)
  • Vibration Alarm
  • Collision / Falling Alarm
  • Speed Alarm
  • Geo-fence Alarm
  • Power Disconnect Alarm
  • Low Battery Alarm

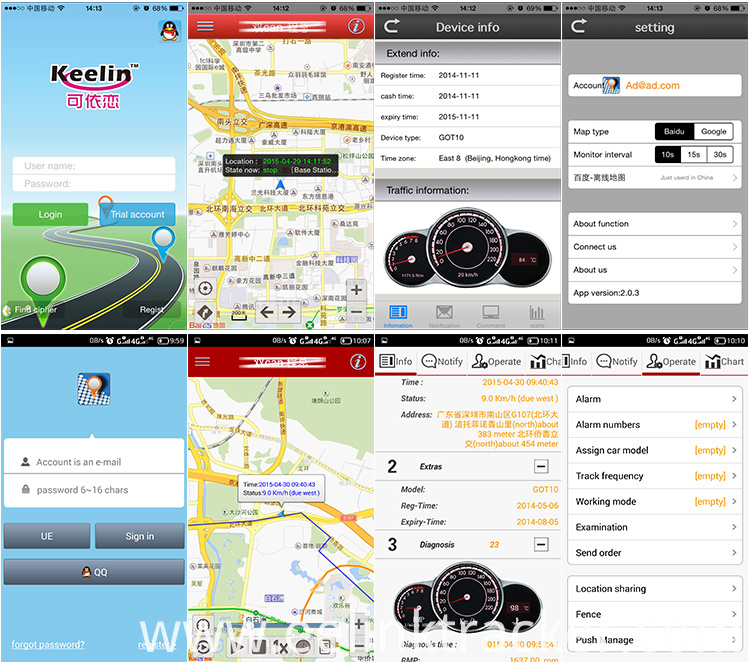

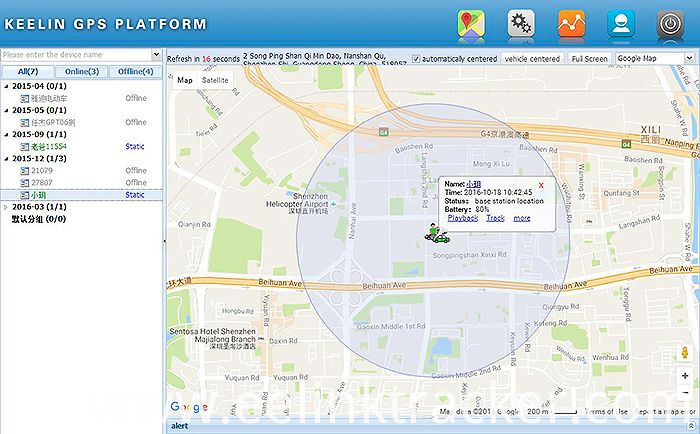

To track the device, you can choose Keelin terminal monitoring platform or download smartphone APP. Both are designed by EELINK. For your test, go to the tracking platform website: www.keelin.com.cn, choose language at right side and click demo button.

Auto Diagnostic Scanner

OBD2 Scanner Iphone

Warranty

*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.

  • Model: TK119-3G
  • Shipping Weight: 0.35lbs
  • 100 Units in Stock
  • Manufactured by: Eelink
