Overview
The EEH-201 is the WLAN antenna that is a low profile design antenna designed for the applications under the 2.4G & 5GMHz coverage.
Features
- Low profile structure design
- Permanent mounting
- IPX7 fully waterproof
- Support 2.4 & 5G
Applications
-
Data communication & transforming
-
Wireless monitoring
Specification
Category
|
Antenna
|
Frequency
|
2400~2485MHz; 5150~5850MHz
|
Gain
|
4.1dBi peak gain under a 0.7 meter cable
|
V.S.W.R
|
< 2.0
|
Band Width
|
85MHz at 2400~2485MHz; 700Hz at 5150~5850MHz
|
Impedance
|
50 Ohm
|
Cable/Connector
|
H100 low cable & Standard RF Connectors
|
Polarization
|
Linear
|
Power Handling Capacity
|
-
|

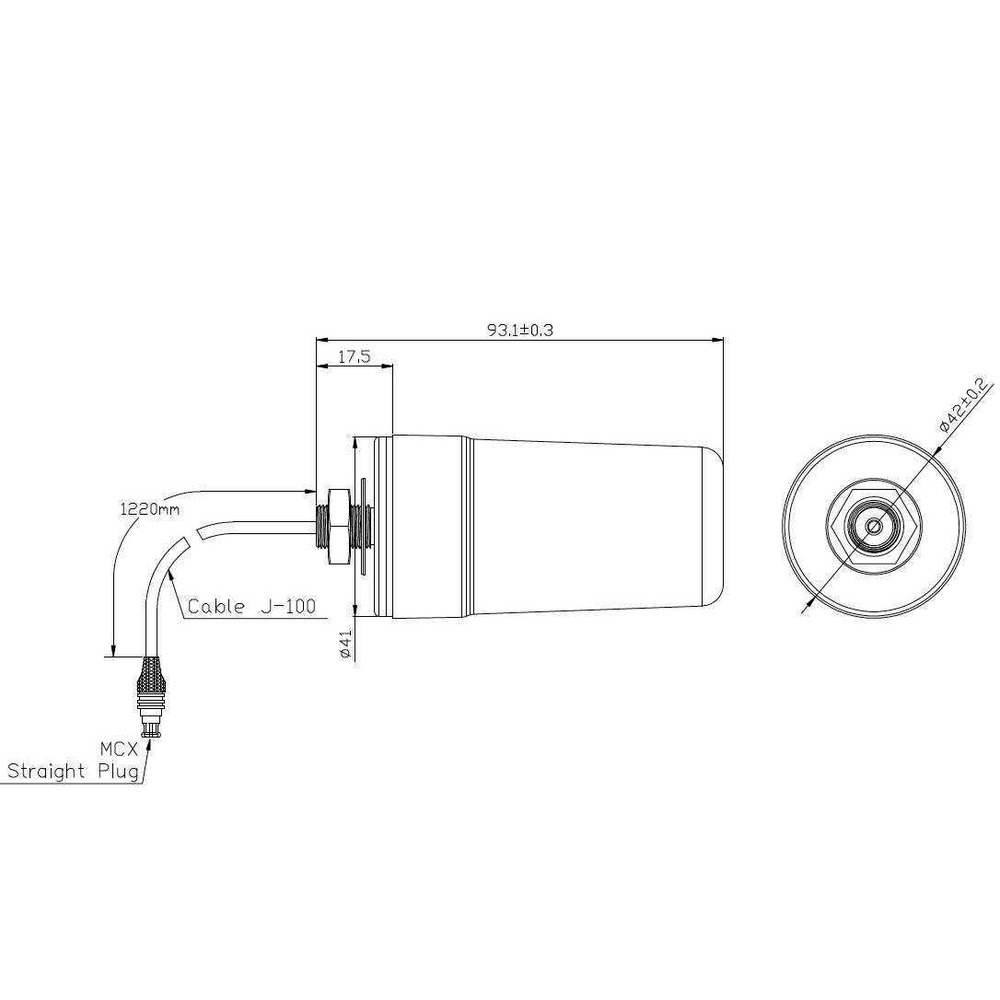

Dimension
|
42mm (Dia.) x 75.6mm (H)
|
Operation Temperature
|
-40°C to +80°C
|
Storage Temperature
|
-40°C to +85°C
|
- Model: EEH-201
- Shipping Weight: 0.25lbs
- 39 Units in Stock
- Manufactured by: San Jose Technologies
