RV-16 High Gain Permanently Mount GPS Antenna


$34.98  $29.98
Save: 14% off

Please Choose:






RV-16 High Gain Marine GPS Antenna

The small size and ruggedness of this antenna is a prerequisites for an antenna in the high demand of vehicle locating and car navigation GPS antenna that will sustain harsh environment

** Universal connectors** AntiTheft & Double Lock

Overview

The antenna system RV-16 is an integration of a high performance GPS patch antenna and a low noise amplifier into state-of-the-art a very low profile/extremely compact/fully waterproof antenna signal enclosure. When connected to a GPS receiver with +5V DC antenna power it provide excellent signal amplification and out-band-rejection for that receiver.

Features

GPS antenna with double threaded bolts and through holes for cable routing with course & fine treaded pitch locking for wing-nut fastener and lock-nut to prevent vibrations and un-authorize removal.

  • Low noise figure / Fully weather proof
  • Ultra-high Sensitivity / Compact construction
  • Excellent temperature stability

Specification

Physical Constructions:
Constructions: Polycarbonate radome,detachable cable/connector for easy mount, rubber-O-ring between top radome and screw base for waterproof
Dimensions: 60mm in diameter x 38mm in height.
Weight: 125grams (w/o cable & connector).
Color: Standard in ivory white, other colours available upon request.
Mounting: Bulkhead mount with 0.8 inch threaded wing nut (standard acessory).
Cable & Connector:
RF cable: 5 meter RG174/U (standard) other length (optional)
Pulling strength: 6 Kg @ 5sec. molded plastic on connector end for strain relief.

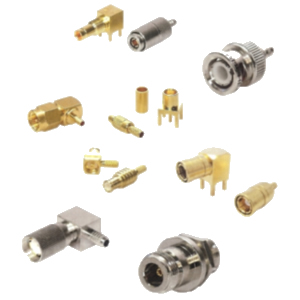

Connector available: BNC,TNC,GT5,MCX(OSX),SMA,SMB or SMC. Straight or right angle.
Optional: Universal Connector Adapter (FME to TNC/BNC/SMA/SMB/MCX)
Antenna Element:
Center Frequency: 1575.42 MHz +/-1.023 MHz
Polarization: R.H.C.P. (Right Handed Circular Polarization).
Absolute Gain @ Zenith: +5 dBi typical.
Gain @ 10° Elevation: -1 dBi typical.
Axial Ratio: 3 dB max.
Output VSWR: 1.5:1 max.
Output Impedance: 50 ?
Low Noise Amplifier:
Center Frequency: 1575.42 MHz
Power Gain: 31 dB typical
Bandwidth: 2 MHz min.
Noise Figure: 1.5 max.
Outer Band Attenuation: 20 dB min. @ Fo +/-50 MHz.
Supply Voltages: 4.5~5.5V DC.
Current Consumption: 28mA +/- 3mA.
VSWR: 2.0max.
Output Impedance: 50 ?
Overall Performance: (antenna element, LNA & coax cable)
Center Frequency: 1575.42 MHz.
Gain: 27 dB typical
Noise Figure: 2.0 dB max.
Axial Ratio: 3 dB max.
Bandwidth: 2MHz min.
VSWR: 2.0 max.
Output Impedance: 50 ?
Enviromental Condition:
Operating Temperature: -40°C~ +85°C.
Storage Temperature: -40°C~ +85°C.
Relative Humidity: 95% non-condensing.
Water Resistance: 100% waterproof.

This specification is subject to change without prior notice



  • Model: RV-16
  • Shipping Weight: 1lbs
  • 99 Units in Stock
  • Manufactured by: San Jose Technologies
