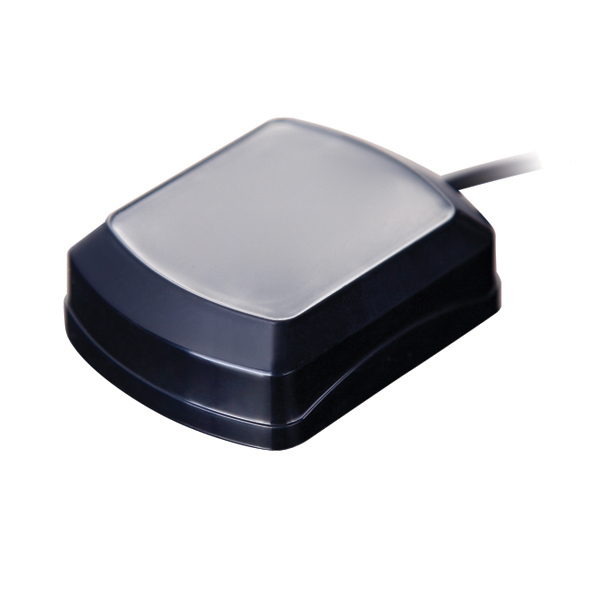

JCA001 GPS Active Antenna

GPS Active Antenna for your customization

Specifications

• Dieletric Antenna
  • Center Frequency: 1575.42MHz±1MHz
  • V.S.W.R < 1.5
  • Band Width: CF±5 MHz
  • Impendence: 50 ohm
  • Gain 5dBic
  • Axial Ratio 3dB (max)
  • Polarization: RHCP
  • Dimension 39x49x15mm
• LNA/Filter
  • LNA Gain 28dB±2dB
  • Noise Figure < 1.5
  • Filter Insertion Loss < 3dB
  • Ex-band Attenuation 12dB@CF+50MHz/16dB@CF-50MHz
  • V.S.W.R < 2.0
  • Supply DC Voltage 2.2V to 5.0V
  • Current Consumption < 5 to 15mA
• Mechanical
  • Cable: RG174
  • Connector SMA/MCX/FAKRA or your specification
  • Radome Material ABS
  • Mounting: Magnet/Adhesive
  • Housing color: Black
• Environmental
  • Operating Temp: -40^oC~+85^oC
  • Storage Temp: -45^oC~+100^oC
  • Vibration 10 to 55Hz with 1.5mm amplitude 2hours
  • Relative Humidity up to 95%
  • Ingress Protection IP65 ~ IP67
  • Environmentally Friendly ROHS Compliant

For GPS system developers, we recommend to order and test few samples first before placing a quantity order. The listed price is the sample price.

All customized items are not returnable for refund if the products function as the specifications.
